What is Oxygen HIG and who benefits

Oxygen HIG is a software for working with Helium IG scanner,
for projects of roughs with Immersion glass.

Release Notes and Documentation

Helium Rough, Helium IG Scanner, M-Box (Digital Microscope) , Autoplot + QC:

Related
Hardware
Related
Software
Helium IG (HIG) Helium Rough, Oxygen Immersion, Oxygen Microscope Server, Oxygen Inclusion, Pacor Client, Oxygen D-Z
See more details in Process Flow table below



What is new ?

10 October 2017 - Oxygen HIG 3.23.30 build 2808 is released. We recommend you to update Oxygen HIG to this version of software.

This version has a full support of new NVIDIA videocards (Pascal family, like GTX 1080). NVIDIA drivers at least 352.00 version is required for correct work of this program.

Download

Oxygen HIG download

The Gallery of marking solutions

Related products and Process Flow

Steps / Process Old process

Without Immersion Glass

Modern process

With Immersion Glass

Scan / Estimate rough during purchase Helium Tender

Scanning or Preliminary scanning of 3D Model of rough
Scanning of rough Helium Rough

Scanning 3D Model of rough
Software for working with Helium Rough and Helium Tender scanners Helium Rough Software download
Immersion Glass Molding Not available

Immersion Glass

In this technology, Immersion Glass material is used. Immersion Glass is the material having nearly same Refractive Index value as Diamond and is solid at Room temperature and melts to liquid at around 100C. We can heat Immersion Glass and Diamond in cubical mold so glass and diamond will become a single entity and reflections of inclusions will be removed. Due to absence of reflections, plotting on M-Box is more precise, very easy and can be done by even non-experienced operator.

Immersion Glass cubical mold Scanning Not available Helium Rough

Scanning 3D Model of Immersion Glass cubical mold with rough inside
Plotting of Inclusions Making set of photos on Helium Rough scanner. Then inclusion including VS to I can be plotted manually on M-Box/Helium Rough photos. Helium IG (HIG)

Completely Automatic Plotting System for Inclusions  VS2-I3

HIG uses 3D model obtained on Helium Rough.

HIG makes set of photos with very high depth of sharpness for better viewing of inclusion.

Software for working with HIG scanner - Oxygen HIG Software
Further plotting of Inclusions on M-Boxes M-Box or M-Box 1.5

M-Box - 5 Axis-Microscopic inclusion mapping system for Helium Rough

M-Box 1.5 - 6 Axis Motorised M-Box with Stereo Viewing through Oculars
M-Box 2.0

M-Box2.0 - 6 Axes Completely Motorized Microscopic - 3D Automatic Inclusion Plotting System

Software for working with M-Boxes Oxygen Immersion
Oxygen Microscope Server
Software for working with projects from M-Boxes Oxygen Inclusion
Software for allocation and planning

Pacor Client - Detecting the most profitable option of rough marking.
Oxygen D-Z - D to Z color estimation: Enhancing value while planning/optimizing.

Scanning and grading diamonds

Helium Polish - Scanning 3D Model of diamond. Creating detailed reports.

Rapid making high quality photos of diamonds

DiBox - Rapid Photography System captures images of polished diamonds under various structured lighting environment and make it ready for Printing or web publishing.

Making 3D video and photo of diamonds

ViBox - The Video Box allows the manufacturer to prepare images and movies 3D for the diamond and diamond jewelry.

Visualizing of 3D models of polished diamonds and other gemstones, grading and making reports

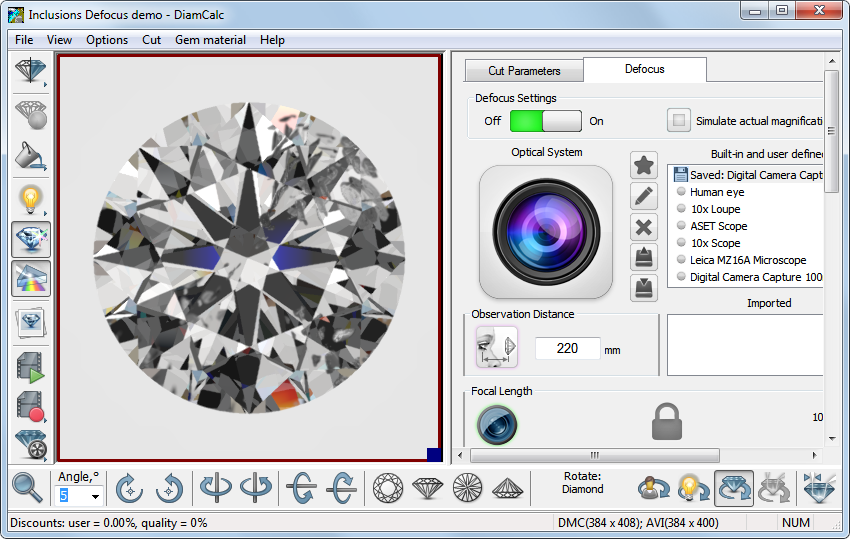

DiamCalc - For jewelers,diamonds graders,sale specialists dealing with diamonds and diamond jewelry, manufacturers,technologists

Free software for visualizing of 3d models of diamonds, exploring solutions, for 3d video of diamonds and jewelry GemAdviser Free Version

Oxygen Viewer Free Version

Stereo Viewer Free Version
